Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibrationDamping gear
1. Mesin Cummins
2.Keandalan Struktur
3.Performa Luar Biasa
4.Efisiensi Tinggi

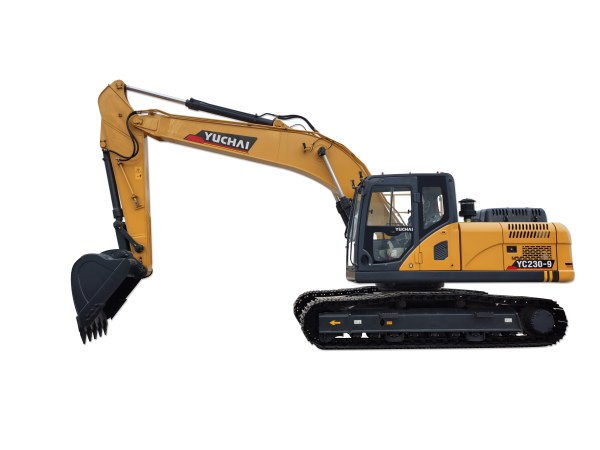

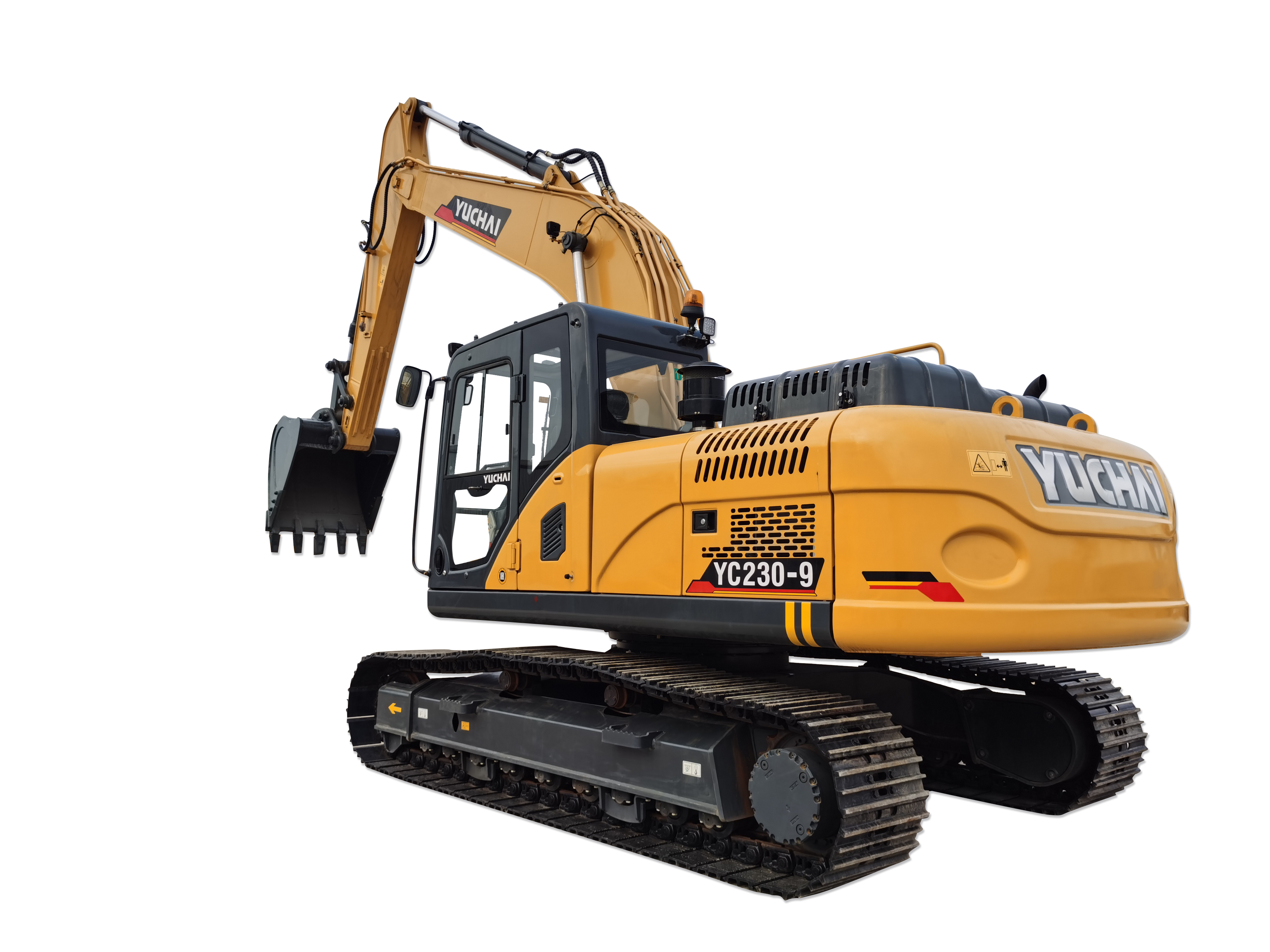

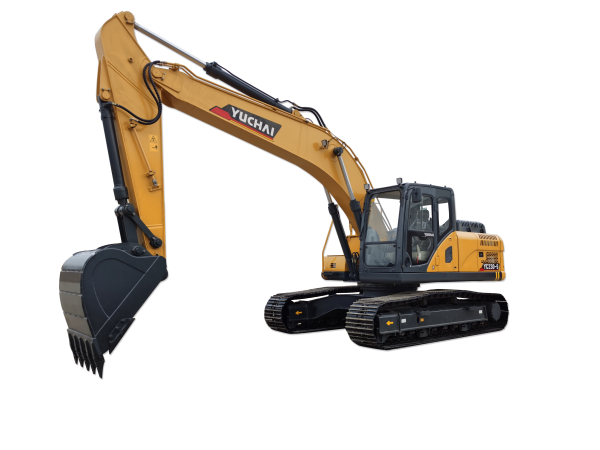

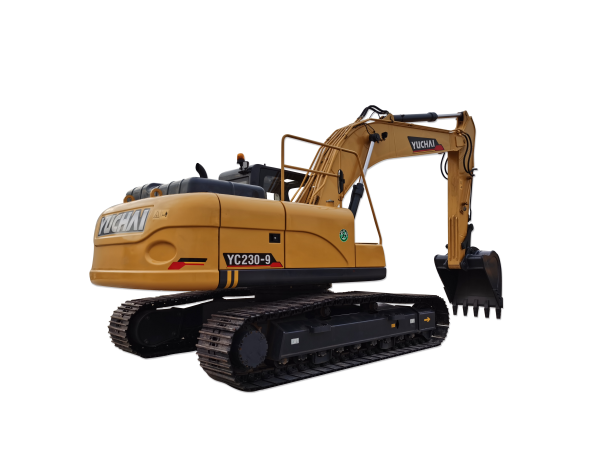

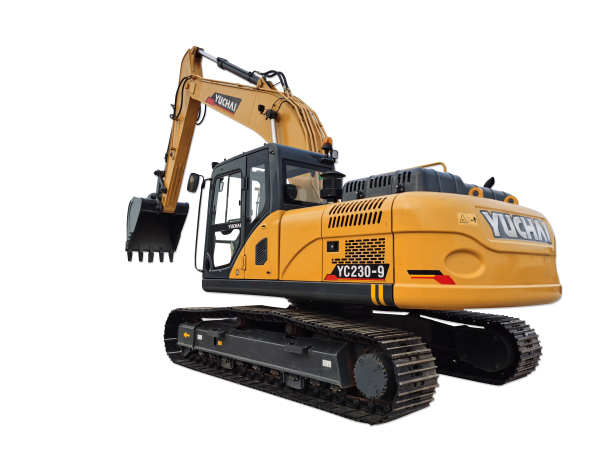

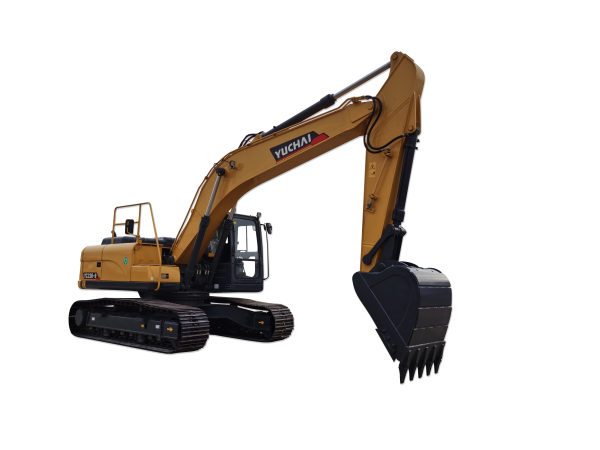

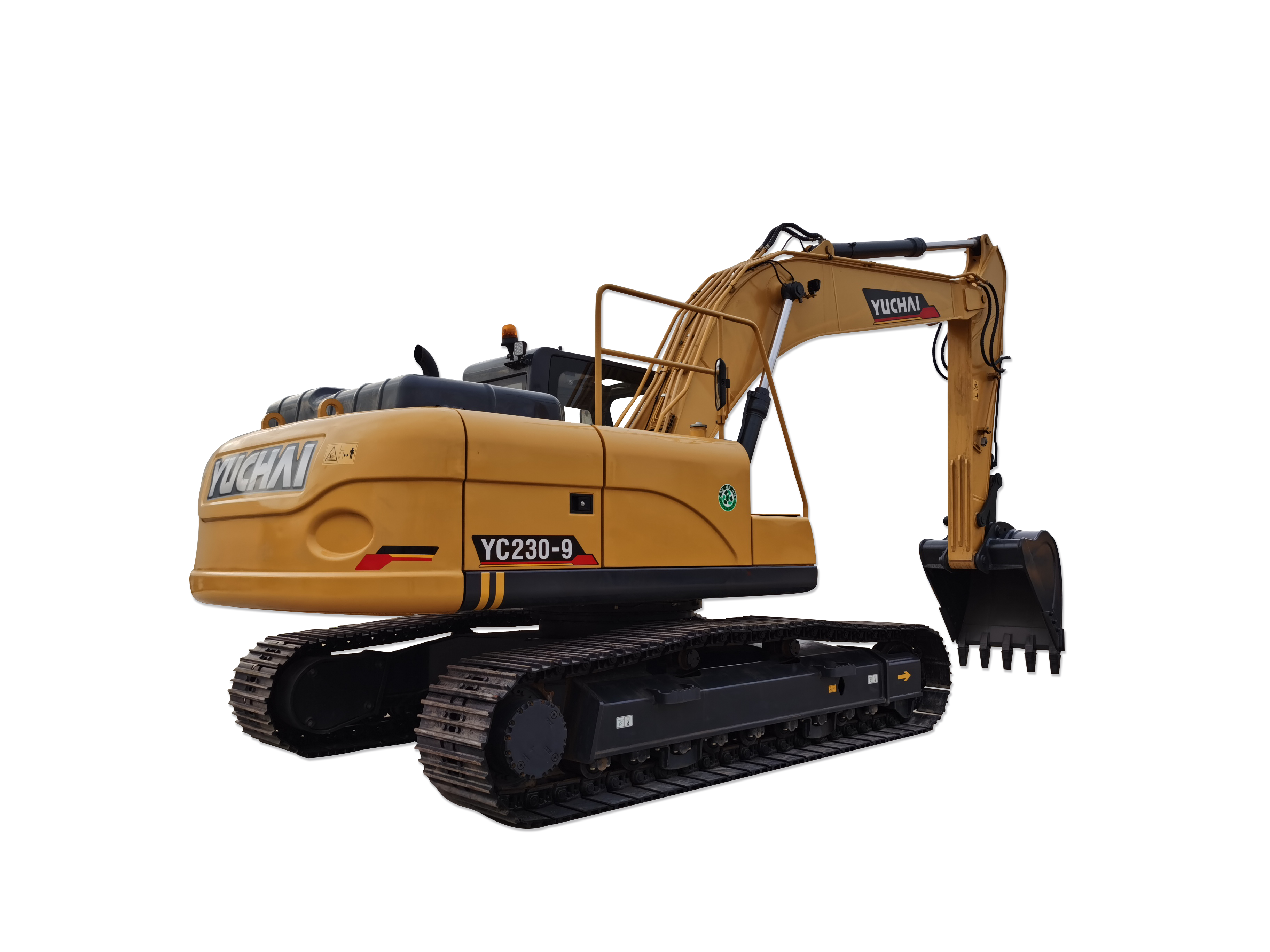

| Model Ekscavator | YC230 | |
| Parameter dasar | ||
| Berat alat berat | kg | 23100 |
| Kapasitas bucket | m³ | 1.08 |
| Lebar bucket | mm | 1340 |
| Parameter kinerja | ||
| Model mesin | Cummins QSB7 | |
| Daya mesin | kW/rpm | 124/2050 |
| Kemampuan menanjak maksimum | 35° | |
| Gaya gali lengan maksimum | kN | 102 |
| Gaya gali bucket maksimum | kN | 139.3 |
| Kecepatan laju | km/jam | 3.4/5.2 |
| Gaya tarik maksimum | kN | |
| Kecepatan slewing platform | rpm | 13~15 |
| Parameter operasi | ||
| Tinggi penggalian maksimum | mm | 9725 |
| Kedalaman penggalian maksimum | mm | 6625 |
| Radius penggalian maksimum | mm | 9890 |
| Radius penggalian maksimum di permukaan tanah | mm | 9725 |
| Tinggi pembuangan maksimum | mm | 6815 |
| Radius slewing minimum | mm | 3410 |
| Kedalaman penggalian vertikal maksimum | mm | 6040 |
| Tinggi blade dozer maksimum | mm | |
| Kedalaman blade dozer maksimum | mm | |
| Dimensi transportasi | ||
| Panjang keseluruhan | mm | 9695 |
| Lebar keseluruhan | mm | 2990 |
| Tinggi keseluruhan | mm | 3115 |
| Parameter Lainnya | ||
| Lebar undercarriage | mm | 2990 |
| Panjang track | mm | 4450 |
| Lebar track | mm | 600 |
| Tinggi antara undercarriage dan tanah | mm | 470 |
| Tinggi antara platform dan tanah | mm | 1070 |
| Radius putar ekor platform | mm | 2945 |
| Panjang ke tengah rol | mm | 3655 |
| Kapasitas tangki bahan bakar | L | 350 |
| Kapasitas tangki oli hidrolik | L | 210 |
| Gauge track | ||
| Tekanan Kerja | Mpa | 34.3 |
| Tekanan Kontak Tanah | kPa | |
| Panjang lengan | mm | |
| Panjang boom | mm | |
| Sudut kepala kemudi | ||
| Laju aliran | L / Menit | 216x2 |
1. Mesin Cummins
2.Keandalan Struktur
3.Performa Luar Biasa
4.Efisiensi Tinggi
